Powerflow Electronics
Clean Resources has teamed up with Powerflow Electronics making Clean Resources the sales distribution channel for Powerflow Electronics products in North America. This agreement will capitalize on the Research and Development efforts of Powerflow Electronics to bring innovative condensate drains to the Clean Resources Brand.
Standard features of all of our drain valves include:
- Completely assembled, ready to install
- Adjustable time scales to suit any condensate discharge times
- Drain test switch
- Yellow LEDs to indicate the status
- Viton seals
- High-precision stainless steel internals
Automatic Drain Valve
Our Automatic Drain Valves work on any compressed air system up to 250 psi and do not air-lock during operation.
Highlighted Features
- Electronic timer
- Power lead (2m) with plug
- Forged brass solenoid valve
- Valve options: ⅛“, ¼“, ⅜“, ½“
- IP65 sealed cap nut
Combi Drain Valve
Our Combi Drain Valve body incorporates a manual isolation valve and stainless steel strainer screen that removes contaminants before reaching the valve orifice.
Highlighted Features
- Valve options: ⅛“, ¼“, ⅜“, ½“
- IP65 sealed cap nut
High-Pressure Drain Valve
Our High-Pressure Drain Valves offer all the features of our standard drain valve at pressure ratings up to 4,000 psi.
Pilot-Operated Drain Valve
Our Pilot-Operated Drain Valves have a larger 11mm orifice for a higher drain rate
Highlighted Features
- Electronic timer
- Power lead (2m) with plug
- Filter ball valve
- Forged brass pilot-operated solenoid valve
Digital Drain Valve
The Digital Drain Valve timer provides ultimate drain open/close flexibility.
Electronic No-Loss Drain Valve
Our Electronic No-Loss Drain Valves features a level-sensing drain switch that helps remove harmful condensate from receiver tanks, aftercoolers, dryers, filters and drip legs.
Highlighted Features
- Test facility
- Status display
- Inlet ports x2 (½“ or ¾“)
- Outlet(⅜“ or ½“)
See page 5 of our brochure to view the no-loss drain product selection tool.
Mechanical No-Loss Drain Valve
Our Mechanical No-Loss Drain Valves offer no air loss with no electric supply required.
Highlighted Features
- Inlets x3
- Manual test facility
- Outlet
Box Valve
Our Box Valves feature a switch indicator light that illuminates when the valve is in the open position.
Features
- Adjustable ON/OFF time
- Manual override switch
- Power lead (2m) with plug
- Forged brass solenoid valve (also available with an integrated combi valve)
- Completely assembled, ready to install
- Adjustable time scales to suit any condensate discharge times
- Drain test switch
- Viton seals
- High-precision stainless steel internals

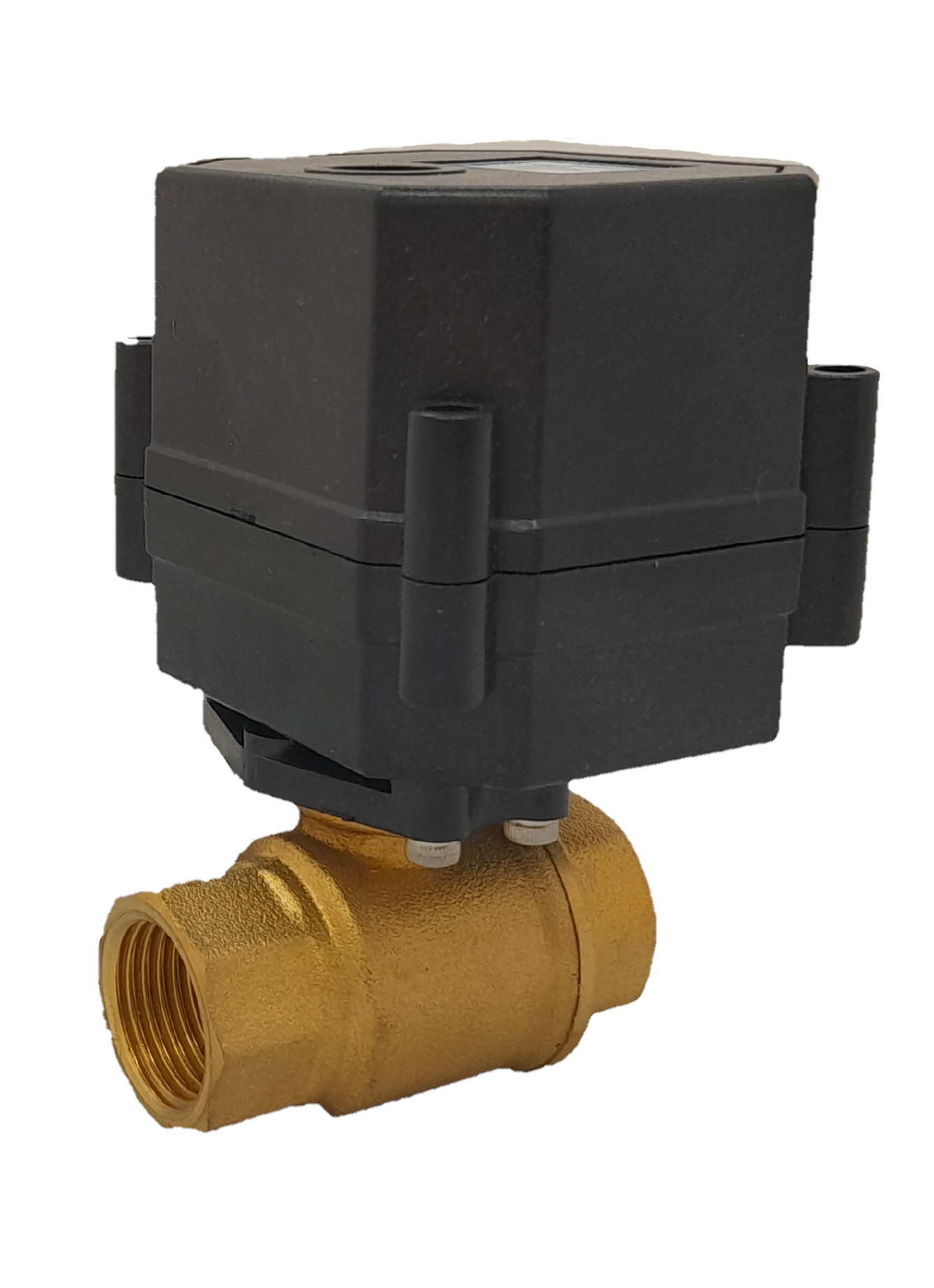

Motorized Ball Valve
Our Programmable Motorized Ball Valves offer users a non-block approach to condensate removal from compressed air systems.
Features
- For use where large particles may block other drain valves
- Available sizes: ¼“, ⅜“, ½“, ¾“, 1“, 1½“
- Programmable timing (non-programmable versions available)
Filter Ball Valve
Our Filter Ball Valves feature internal stainless steel filters and filter screens.
Features
- Stainless steel filter screens
- Output sizes: ⅛“, ¼“, ⅜“, ½“
- Optional vented cap nut available
Solenoid Valve Timer
The Solenoid Valve Timer automates the ON/OFF time of the solenoid valve in any pneumatic system.
Along with our standard product configuration, we also offer an extensive range of customizable options to suit your needs. These include the following:
Private Labeling
Includes custom logo and colors
Illuminated Power Lead
Red light indicates power ON
Filter Ball Valve
Control the flow of liquid or gas
Vented Cap Nut
Fitted on filter ball valve
The Original Creator of the Solenoid Valve Drain Timer
Powerflow Electronics was established in 1982, specializing in designing, developing, and manufacturing of electronic control and automation equipment for industrial and commercial applications, with a particular emphasis on the compressed air industry.
Leader in Condensate Management for Over 40 Years
With more than 40 years experience, Powerflow has become the supplier of choice for all the world’s leading Compressed Air equipment OEMs. The form and function of our Solenoid Valve Drain Timer have become the industry standard in Solenoid Drain Timers.
Have questions about condensate drains? View our FAQ.
