NRD-NCE Series Air Dryers
The NEXT AIR NCE (15–300 CFM) series of dryers was developed to meet the needs of its most demanding customers in an economical package. All models are equipped with an electronic board system and a double sensor system that keeps the dewpoint and the condensing pressure under control. The aluminum heat exchanger has been studied and patented in order to offer maximum performance and minimum pressure drop. The NRD-NCE series was developed with total respect for the environment through the use of eco-friendly gases and recyclable materials.
NRD-NCE 35 – 300

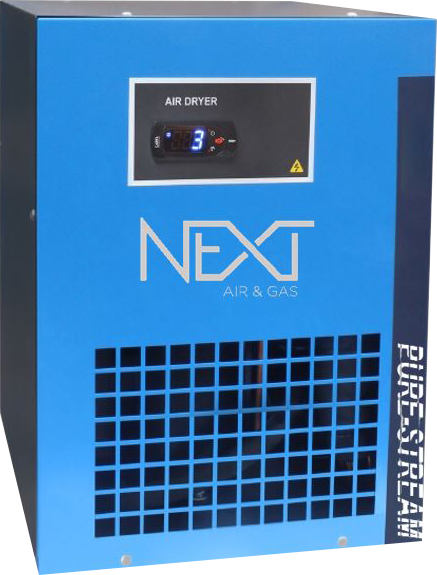

The NRD-NCE air dryers were developed to meet demanding needs in an economical package.
| NRD-NCE Unit | Refrigerant | Flow Rate (SCFM) |
Connection | Power Supply |
|---|---|---|---|---|
| NRD-NCE-15 | R134a | 15 | ¾" NPT | 115/1/60 |
| NRD-NCE-20 | R134a | 20 | ¾" NPT | 115/1/60 |
| NRD-NCE-35 | R134a | 35 | ¾" NPT | 115/1/60 |
| NRD-NCE-50 | R134a | 50 | ¾" NPT | 115/1/60 |
| NRD-NCE-75 | R134a | 75 | 1" NPT | 115/1/60 |
| NRD-NCE-100 | R134a | 100 | 1" NPT | 115/1/60 |
| NRD-NCE-125 | R134a | 125 | 1" NPT | 115/1/60 |
| NRD-NCE-150 | R134a | 150 | 1" NPT | 115/1/60 |
| NRD-NCE-175 | R407C | 175 | 1½" NPT | 115/1/60 |
| NRD-NCE-220 | R407C | 220 | 1½" NPT | 230/1/60 |
| NRD-NCE-300 | R407C | 300 | 1½" NPT | 230/1/60 |
Inlet flow rates stated in the specification table assume the following conditions: 100° F inlet temperature, 100° F ambient temperature, and 100 psig operating pressure.
For proper operation, compressed air dryers must be sized for the maximum temperatures, minimum pressure and maximum flow rate of the installation.
To obtain dryer flow capacity for non-standard conditions use the following formula:
Dryer Flow Rate × CF1 × CF2 × CF3 = New Flow Capacity
To select a dryer based on the system flow of the compressed air system use the following formula. Then select a dryer that has a flow rate that is equal to or above the minimum required drying capacity.
System Flow / CF1 / CF2 / CF3 = Minimum Required Drying Capacity
Correction Factors for Inlet Air Temperature (CF1)
| Air Temperature (° F) | Correction Factor |
|---|---|
| 90 | 1.11 |
| 100 | 1.00 |
| 110 | 0.80 |
| 120 | 0.65 |
| 130 | 0.53 |
Correction Factors for Ambient Temperature (CF2)
| Ambient Temperature (° F) | Correction Factor |
|---|---|
| 80 | 1.10 |
| 90 | 1.07 |
| 100 | 1.00 |
| 110 | 0.83 |
| 115 | 0.70 |
Correction Factors for Operating Pressure (CF3)
| Inlet Air Pressure (psig) | Correction Factor |
|---|---|
| 60 | 0.79 |
| 80 | 0.91 |
| 100 | 1.00 |
| 120 | 1.07 |
| 140 | 1.13 |
| 160 | 1.18 |
| 180 | 1.23 |
| 200 | 1.27 |
