Condensate Inlet
Insert 1/4" poly tubing line from the flow regulator into push-to-connect fitting
Condensate Outlet
10 ppm or less of filtered condensate exits to sanitary or floor drain
Pressure Regulator
Insert 1/4" poly tubing compressor line into the pressure regulator. Units can accept inlet pressure to 175 psi.
Cartridges
Threaded spin on/off cartridges for no mess, quick install or change-out of expired cartridge
Custom-built wall bracket for ease of installation
Threaded spin on/off cartridges for no mess, quick maintenance
Media operates regardless of specific gravity, relative humidity or emulsification
No priming required
Clean Resources 10 ppm guarantee
Handles all compressor lubricants

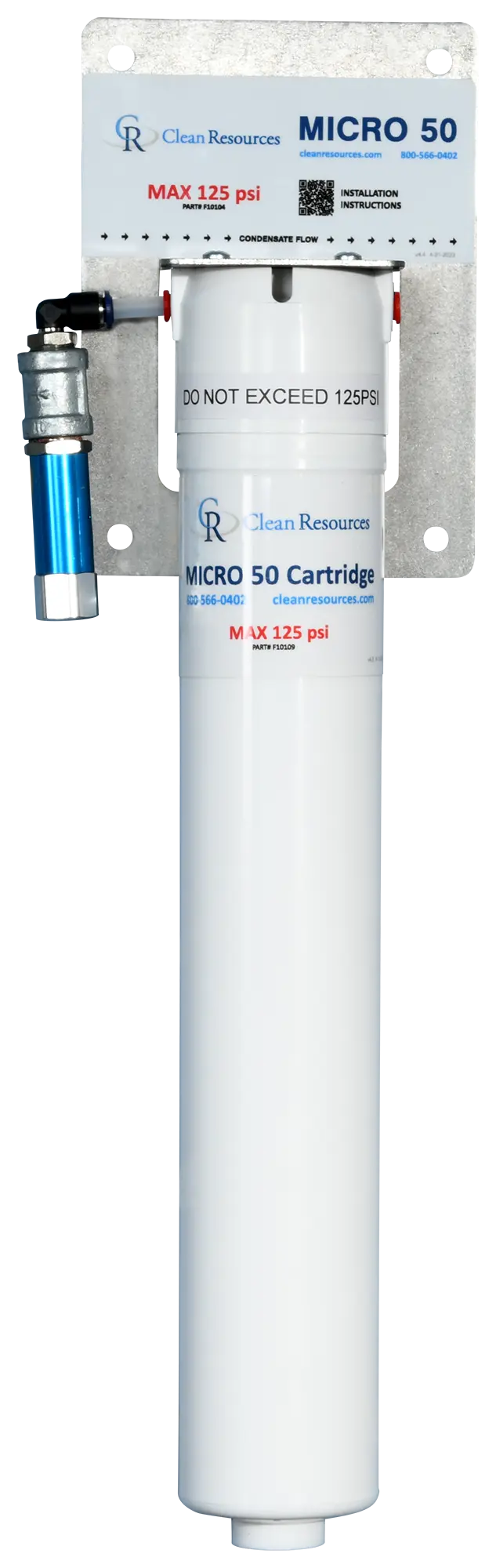

Micro 50
Clean Resources MICRO 50 oil-water separator is an economical and ideal solution for businesses with small compressed air systems in the 5 HP to 15 HP range and up to 125 psi.
MICRO units include a factory-installed and plumbed wall bracket, reducing installation time. Mount the MICRO to a secure fixture, thread the cartridge, attach the compressor line, and run a poly tube to the drain. That’s it!
Don’t let the compact size fool you. The MICRO 50 efficiently removes oil from the condensate. Plus, replacement cartridges provide straightforward, no-mess maintenance and offer the lowest life cycle cost in the industry.
Part Number: F10104
Replacement Cartridge Part Number: F10109
| Micro Unit | Width (in) | Depth (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|
| 50 | 12 | 5 | 19 | 3 |
| HP | ACFM | Unit Life in Hours†‡ | Est. Hrs/Yr |
|---|---|---|---|
| 5 | 20 | 5,000 | 2,000 |
| 7.5 | 30 | 3,000 | 2,000 |
| 10 | 40 | 3,000 | 2,000 |
| 15 | 75 | 1,000 | 2,000 |
† Unit life numbers in this chart assume rotary screw compressors with 2 ppm oil carryover running 8,000 hrs/yr. Unit life may vary due to differences in air compressor oil consumption rates, age, and maintenance of compressor.
ROTARY SCREW COMPRESSORS (2 ppm carryover)
Unit Life: [hours from above] x [CF from below]
Example: Micro 100 at 15 hp running 6,000 hrs/yr
Unit Life: 3,000 x 1.33 = 3,990 hours‡
RECIPROCATING COMPRESSORS (8 ppm carryover)
Unit Life: [hours from above] x 0.25 x [CF from below]
Example: Micro 100 at 5 hp running 4,000 hrs/yr
Unit Life: 10,000 x 0.25 x 2 = 5,000 hours‡
‡ To calculate unit life in months: [Unit Life] / 8,000 * 12
| Hrs/yr runtime | 8,000 | 6,000 | 4,000 | 2,000 |
|---|---|---|---|---|
| Life Correction Factor (CF) | 1 | 1.33 | 2 | 4 |

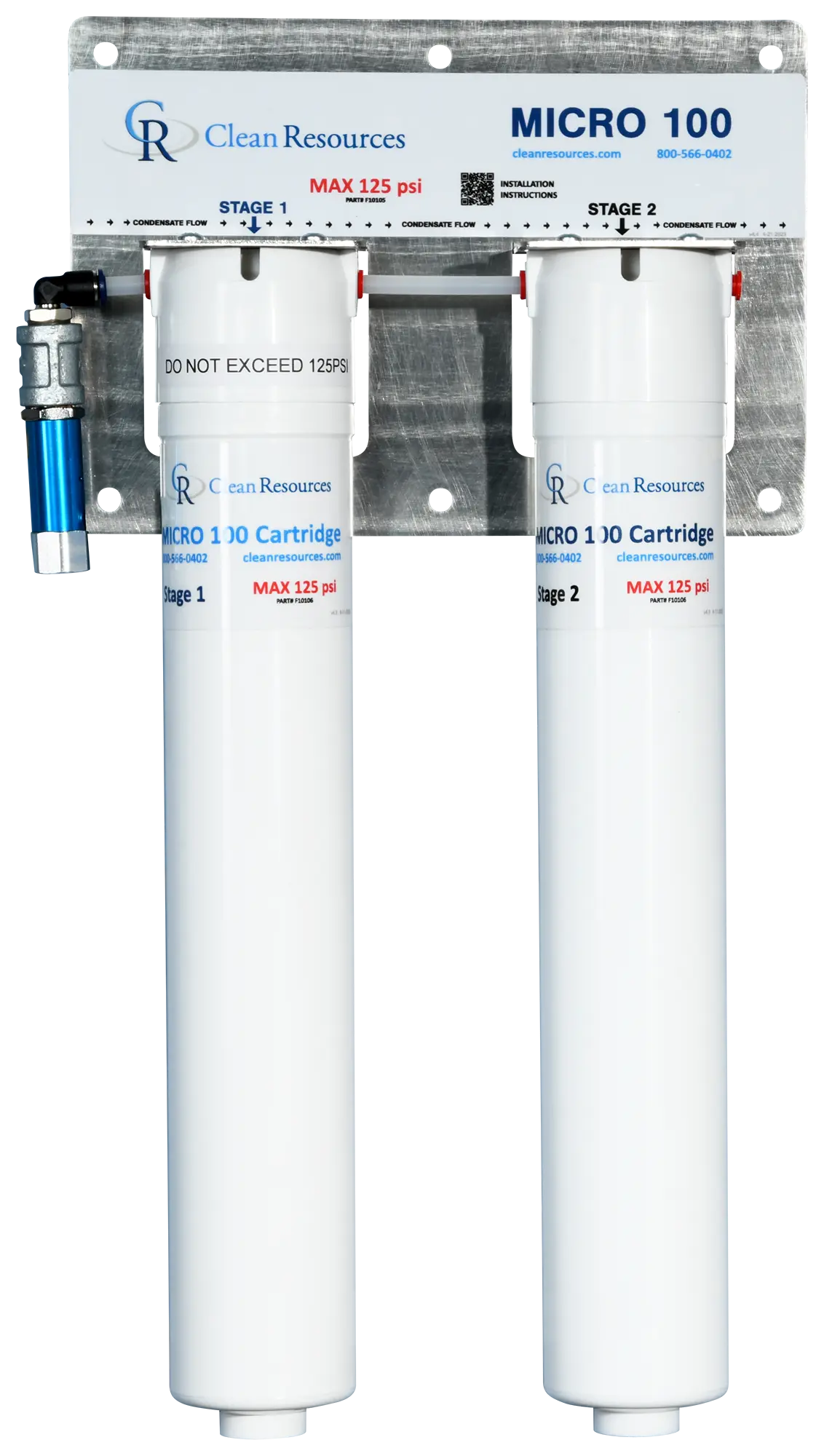

Micro 100
Clean Resources MICRO 100 oil-water separator is an economical and ideal solution for businesses with small compressed air systems in the 5 HP to 25 HP range and up to 125 psi.
MICRO units include a factory-installed and plumbed wall bracket, reducing installation time. Mount the MICRO to a secure fixture, thread the cartridges, attach the compressor line, and run a poly tube to the drain. That’s it!
The MICRO 100 uses Clean Resources' proprietary, chemically modified substrate media to adsorb ALL compressor-based lubricants, including silicone and polyalkylene glycol (PAGs), and food grade. Clean Resources is the only oil-water separator company to back this claim with third-party testing data. Plus, replacement cartridges provide easy, no mess maintenance and offer the lowest life cycle cost in the industry.
Part Number: F10105
Replacement Cartridges Part Number: F10106
| Micro Unit | Width (in) | Depth (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|
| 100 | 17 | 5 | 19 | 6 |
| HP | ACFM | Unit Life in Hours†‡ | Est. Hrs/Yr |
|---|---|---|---|
| 5 | 20 | 10,000 | 2,000 |
| 7.5 | 30 | 6,000 | 2,000 |
| 10 | 40 | 5,000 | 2,000 |
| 15 | 75 | 3,000 | 2,000 |
| 20 | 100 | 2,000 | 2,000 |
| 25 | 125 | 2,000 | 2,000 |
† Unit life numbers in this chart assume rotary screw compressors with 2 ppm oil carryover running 8,000 hrs/yr. Unit life may vary due to differences in air compressor oil consumption rates, age, and maintenance of compressor.
ROTARY SCREW COMPRESSORS (2 ppm carryover)
Unit Life: [hours from above] x [CF from below]
Example: Micro 100 at 15 hp running 6,000 hrs/yr
Unit Life: 3,000 x 1.33 = 3,990 hours‡
RECIPROCATING COMPRESSORS (8 ppm carryover)
Unit Life: [hours from above] x 0.25 x [CF from below]
Example: Micro 100 at 5 hp running 4,000 hrs/yr
Unit Life: 10,000 x 0.25 x 2 = 5,000 hours‡
‡ To calculate unit life in months: [Unit Life] / 8,000 * 12
| Hrs/yr runtime | 8,000 | 6,000 | 4,000 | 2,000 |
|---|---|---|---|---|
| Life Correction Factor (CF) | 1 | 1.33 | 2 | 4 |
